L-Storage

Meaning

The L-Storage represents a passive component of a system. Agents can read from it or write to it. Storage that is accessed by at least two Agents is called shared storage.

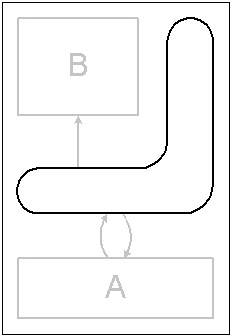

Utilization

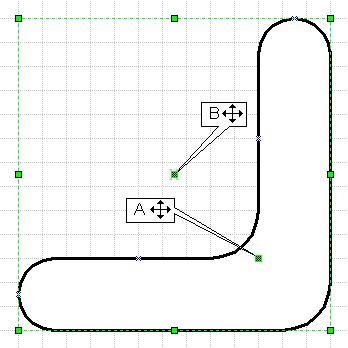

Control Points

A )
  • manipulates the shape of the drawing
  • limited by the bounds of the drawing
  • when sizing the master the point keeps its relative position to the lower right corner
B )
  • moves the position of the explaining text
  • appears only when text has been entered
  • to enter text double click the shape or start typing while the shape is selected
