Multiple Layering

Meaning

The Multiple Layering is different from the Simple Layering only that it comes with up to 5 connections for lower level elements.

Utilization

Control Points

A) defines the vertical position of the horizontal line should NOT be used to connect with a layer element (use control points "B" for that) B) move the connections from left to right define the vertical length of the connections C) you can hide a connection if you drag it above the horizontal line

Hints

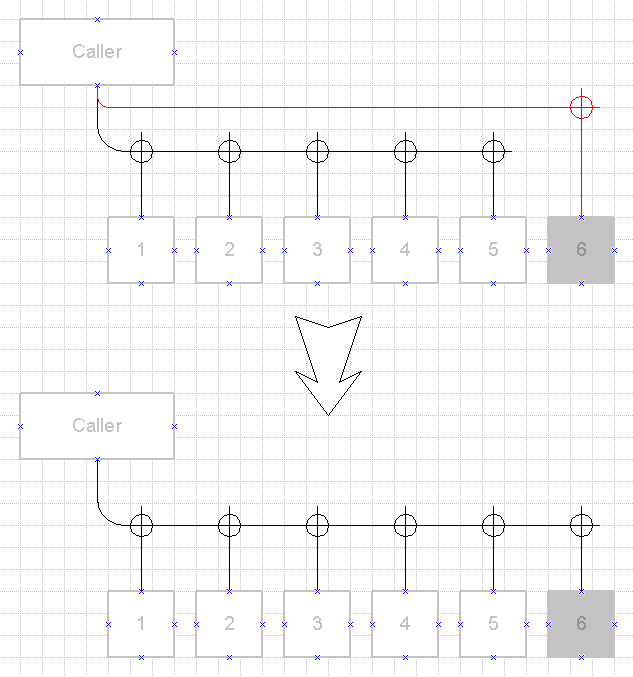

If you need more than 5 connections for elements of a lower level, use one extra Simple Layering or Multiple Layering and put them on top of each other.
