4.4 The Request-Response Loop

4.4.1 Overview

The Request-Response Loop is the heart of the HTTP Server. Every Apache child server processes this loop until it dies either because it was asked to exit by the master server or because it realized that its generation is obsolete.

Figure 4.13: The Request-Response Loop (View PDF)

Figure 4.13 shows the request-response loop and the keep-alive loop. To be exact, the request-response loop deals with waiting for and accepting connection requests while the keep-alive loop deals with receiving and responding to HTTP requests on that connection.

4.4.2 Waiting for connection requests

Depending on the multitasking architecture used, either each idle worker tries to become listener, or it waits for a job in a job queue. In both cases it will be suspended until the mutex or the job queue indicates either that it will be the next listener or that a new job is in the queue.

The transitions in the rectangle ``wait for TCP request'' in figure 4.13 show the Leader-Follower model of the Preforking MPM: The child server task tries to get the accept mutex to become listener and will be suspended again until a TCP connection request comes in. It accepts the connection and releases the accept mutex. (see also child_main() in prefork.c).

After a child server received a connection request, it leaves the scope of the MPM and triggers the hooks pre_connection and process_connection. The module http_core.c registers the handler ap_process_http_connection() for the latter hook which reads and processes the request.

4.4.3 Waiting for and reading HTTP requests

An HTTP client, for example a browser, re-uses an existing TCP connection for a sequence of requests. An HTML document with 5 images results in a sequence of 6 HTTP requests that can use the same TCP connection. The TCP connection is closed after a time-out period (usually 15 seconds). As the HTTP header used to control the connection had the value ``keep-alive'', the loop carries this name.

The keep-alive loop for reading and processing HTTP requests is specific for HTTP. Therefore in Apache 2, the module http_core.c registers the handler ap_process_http_connection() which includes the keep-alive loop. Similar to the transient pool, the request pool is cleared with every run of the keep-alive loop.

The child server reads the request header (the request body will be treated by the corresponding content handler) with the procedure ap_read_request() in protocol.c. It stores the result of the parsing in the data structure request_rec. There are many errors that can occur in this phase^4.6. Note that only the header of the HTTP request is read at this time!

4.4.4 Process HTTP Request

After the HTTP header has been read, the child server status changes to ``busy_write''. Now it's time to respond to the request.

Figure 4.14: Processing of a request (View PDF)

Figure 4.14 shows the details of the request processing in Apache 2.0. Request processing in Apache 1.3 is almost the same. The only major exception is that only a single content handler can be used in apache, but multiple modules can take part in forming the response in Apache 2.0 as the filter concept is used.

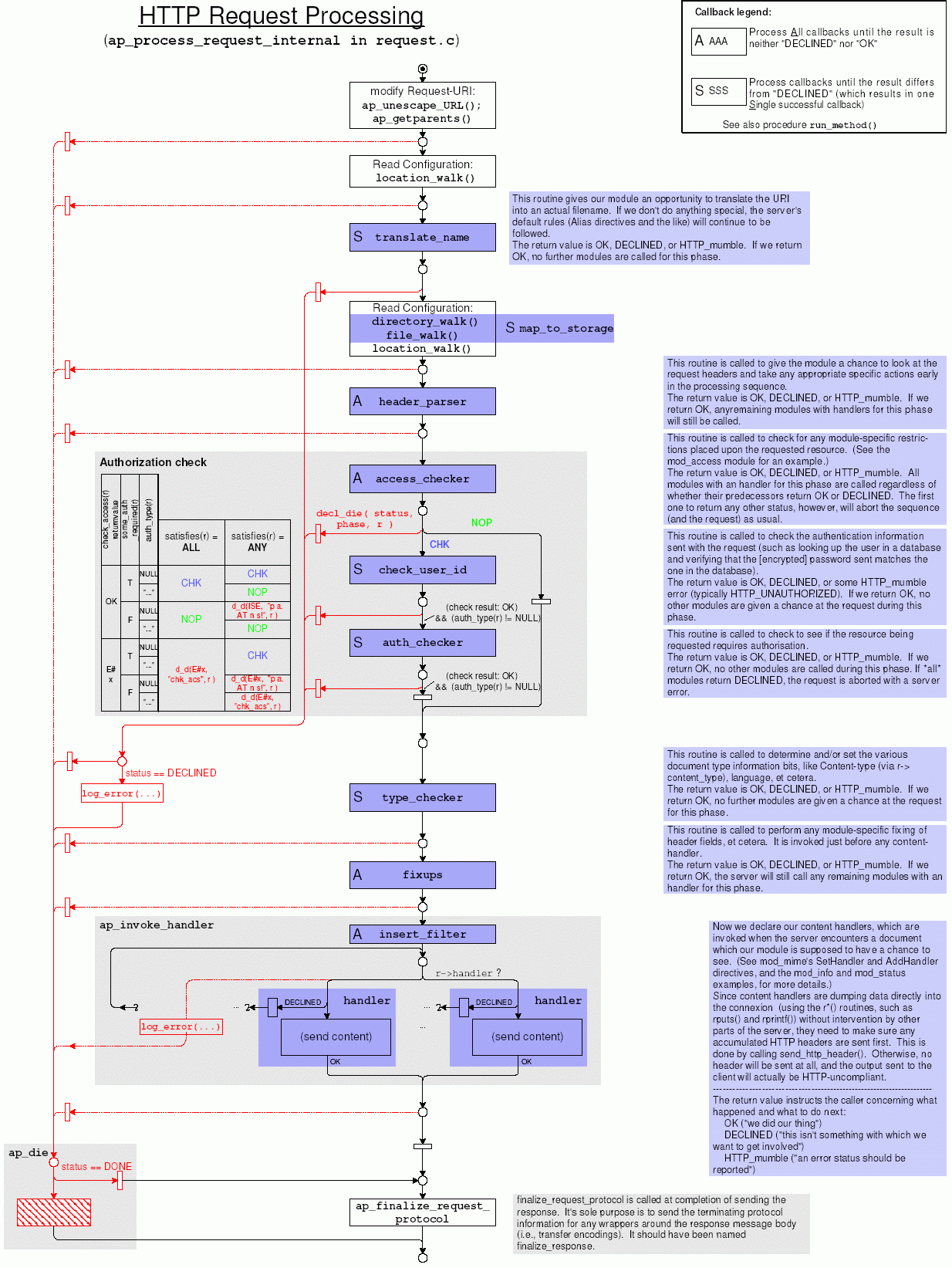

The procedure ap_process_request() in http_request.c calls process_request_internal() in request.c. What happens in this procedure is shown in figure 4.14 which is similar to figure 3.9 in section 3.3 , but provides technical details and explanations:

• First the URI is modified (ap_unescape_URL(), ap_getparents()): Apache replaces escape character sequences like ``%20'' and path 'noise' like ``./xxx'' or ``xxx/../''.
• Then Apache retrieves the configuration for the Request URI: location_walk(). This happens before a module translates the URI because it can influence the way the URI is translated. Detailed information about Apache's configuration management can be found in section 4.5.
• ap_translate_name(): Some module handler must translate the request URI into a local resource name, usually a path in the file system.
• Again it gets the pieces of configuration information for the Request URI with location_walk() (the URI can differ from the request URI after being processed by ap_translate_name()!). The core handler for the hook map_to_storage, core_map_to_storage() calls ap_directory_walk() and ap_file_walk() which collect and merge configuration information for the path and the file name of the requested resource. The result is the configuration that will be given to all module handlers that process this request.
  (``walk'': Apache traverses the configuration information of every section of the path or URI from the root to the leaf and merges them. The .htaccess files are read by directory_walk()in every directory and by file_walk() in the leaf directory.)
• header_parser: Every module has the opportunity to process the header (to read cookies for example).

4.4.4.0.1 Authorization check

There are two independent authorization checks:

1. Access check based on the IP address of the client computer
2. Authorization check based on the identity of the client user (to get the identity, an authentication check is necessary)

The administrator can configure for each resource:

• users, groups, IP addresses and network addresses
• the rules for the authorization check (allow/deny IP or users, either both IP and Identity check must be successful or only one of both)

The complex behavior of the authorization check could not be illustrated completely in figure 4.14. Use the matrix on the left-hand side to map the program statements to the operations.

• access_checker: IP-based authorization check
• ap_check_user_id: authentication check
• auth_checker: authorization check based on the user's identity
• type_checker: get the MIME type of the requested resource. This is important for selecting the corresponding content handler.
• fixups: Any module can write data into the response header (to set a cookie, for example).
• insert_filter: Any module can register output filters.
• handler: The module registered for the MIME type of the resource offers one or more content handlers to create the response data (header and body). Some handlers, e.g. the CGI module content handler, read the body of the request. The content handle sends the response body through the output filter chain.
• ap_finalize_request_protocol(): This method should have been named ``finalize response''. Its sole purpose is to send the terminating protocol information for any wrappers around the response message body (i.e. transfer encodings).

The error handling shown on the left side is 'misused' if Apache wants to skip further request processing. The procedure ap_die() checks the status and sends an error message only if an error occurred. This ``misuse'' happens for example if ap_translate_name is successful (it returns ``DONE'')!

For more information on filters, check section 3.3.4.

Footnotes

... phase^4.6

If you want to check this, establish a TCP/IP connection with telnet (telnet hostname port) and type in a correct HTTP request according to HTTP/1.1.
