L-Agent

Meaning

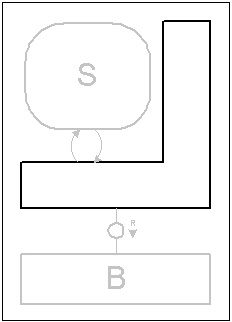

The L-Agent represents an active component of a system. It can read from or write to a storage and exchange information with other agents using channels or shared storage. Only passive components may be connected to agents.

Utilization

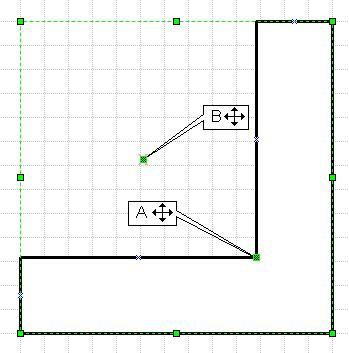

Control Points

A )
  • manipulates the shape of the drawing
  • limited by the bounds of the drawing
  • when sizing the master the point keeps its relative position to the lower right corner
B )
  • moves the position of the explaining text
  • appears only when text has been entered
  • to enter text double click the shape or start typing while the shape is selected

See also

Agent
U-Agent
Human Agent
